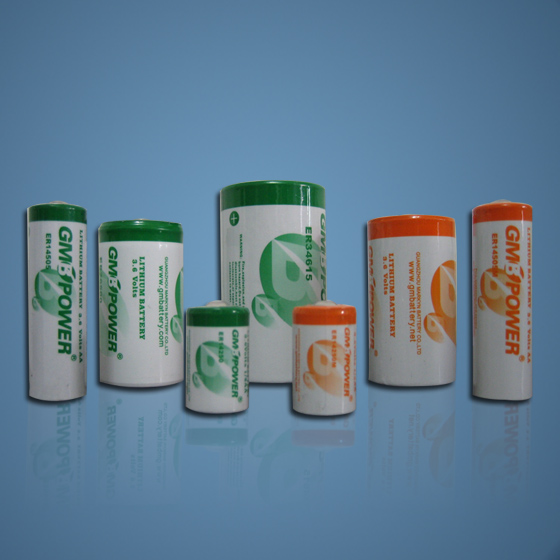

Product Numbers:Lithium Primary
Product description:(1).Energy(Bobbin)Type, high capacity, shelf life is ten years; (2). Wide operating temperature range: -55 ℃~+85℃; (3). Smooth voltage level, 90% capacity could be outputted at high level.
A. Characteristics
1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature(-55°C~+85°C).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
B. Application
Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.
Lithium Thionyl Chloride Battery Specification (High Energy)
Type |
Nominal
capacity |
Nominal
voltage |
Operating
current mA(max) |
Standard
discharge |
Cut
off voltage |
Dimension
mm(max) |
weight |
|||
GB |
IEC |
mAh |
V |
continuous |
pulse |
current
mA |
V |
dia. |
H |
g |
ER9V120 |
. |
1200 |
9.0 |
35 |
100 |
0.5 |
5.4 |
48.8*26*16.9 |
40 |
|
ER10250 |
1/2AAA |
400 |
3.6 |
5 |
10 |
0.5 |
2.0 |
10.4 |
25.0 |
3.8 |
ER10450 |
AAA |
750 |
3.6 |
15 |
50 |
1.0 |
2.0 |
10.3 |
45.0 |
8 |
ER14200 |
600 |
3.6 |
10 |
15 |
1.0 |
2.0 |
14.5 |
20.0 |
8 |
|
ER14250 |
1/2AA |
1200 |
3.6 |
25 |
100 |
1.0 |
2.0 |
14.5 |
25.0 |
10 |
ER14335 |
2/3AA |
1650 |
3.6 |
50 |
100 |
1.0 |
2.0 |
14.5 |
33.5 |
13 |
ER14505 |
AA |
2400 |
3.6 |
70 |
150 |
1.0 |
2.0 |
14.5 |
50.5 |
19 |
ER17250 |
1000 |
3.6 |
100 |
200 |
1.0 |
2.0 |
17.0 |
25.0 |
12 |
|
ER17335 |
2/3A |
1900 |
3.6 |
100 |
200 |
0.5 |
2.0 |
17.0 |
33.5 |
19 |
ER17450 |
3000 |
3.6 |
100 |
200 |
3.0 |
2.0 |
17.0 |
45.0 |
25 |
|
ER17505 |
A |
3400 |
3.6 |
120 |
200 |
2.0 |
2.0 |
17.0 |
50.5 |
27 |
ER18505 |
3800 |
3.6 |
100 |
200 |
3.0 |
2.0 |
18.5 |
50.5 |
31 |
|
ER26250 |
1/2C |
3000 |
3.6 |
30 |
200 |
1.0 |
2.0 |
26.2 |
25.0 |
26 |
ER26500 |
C |
8500 |
3.6 |
150 |
300 |
2.0 |
2.0 |
26.2 |
50.0 |
55 |
ER261020 |
CC |
15000 |
3.6 |
100 |
400 |
1.0 |
2.0 |
26.2 |
102.0 |
100 |
ER34615 |
D |
19000 |
3.6 |
230 |
400 |
2.0 |
2.0 |
34.2 |
61.5 |
102 |
ER341245 |
DD |
36000 |
3.6 |
200 |
400 |
3.0 |
2.0 |
34.0 |
124.5 |
200 |
ER261020 |
17000 |
3.6 |
150 |
300 |
2.0 |
2.0 |
26.0 |
102.0 |
100 |
|
ER10280 |
450 |
3.6 |
10 |
20 |
0.5 |
2.0 |
10.4 |
28.0 |
5 |
